Short-Stroke Hydraulic Cylinders
The V250CE series is made of short-stroke hydraulic cylinders with linear movement, aluminum bodies and single rod-ends (no passing-through rods). The standard version includes piston bores from 25 to 100 mm, and strokes from 20 to 80 mm. Its fixings allow for installation by means of through-holes along the length of the cylinder, or by means of pinned through-holes and a key.
Compact Hydraulic Cylinders for Molds
Vega Cylinders is specialized in producing compact hydraulic cylinders for molds. The V250CE series has been designed for moving all those components—such as carts, pins, and plugs—that might produce undercuts in plastic injection molds.
These oil-dynamic short-stroke cylinders can boast a very competitive price, and are usually employed when molding cycles are not particularly fast and working temperatures are not excessively high.
However, it’s not suitable for moving ejection tables in injection molds.
Double Acting Hydraulic Cylinder
These double acting hydraulic cylinder come with a 7075 aluminum alloy body, a chromium-molybdenum steel rod, and 7075 aluminum alloy piston.
Heat-insulating flanges are available to separate the cylinder itself from the carts, pins and plugs of the mold.
V250CE cylinders are compatible with ISO VG 46 mineral oil. The cartridge sealing system includes a scraper, three elastic rings, and two Viton O-rings. These components allow the cylinder sealing system to avoid metal contacts and to last over long periods of time. a lasting contactless sealing over time.

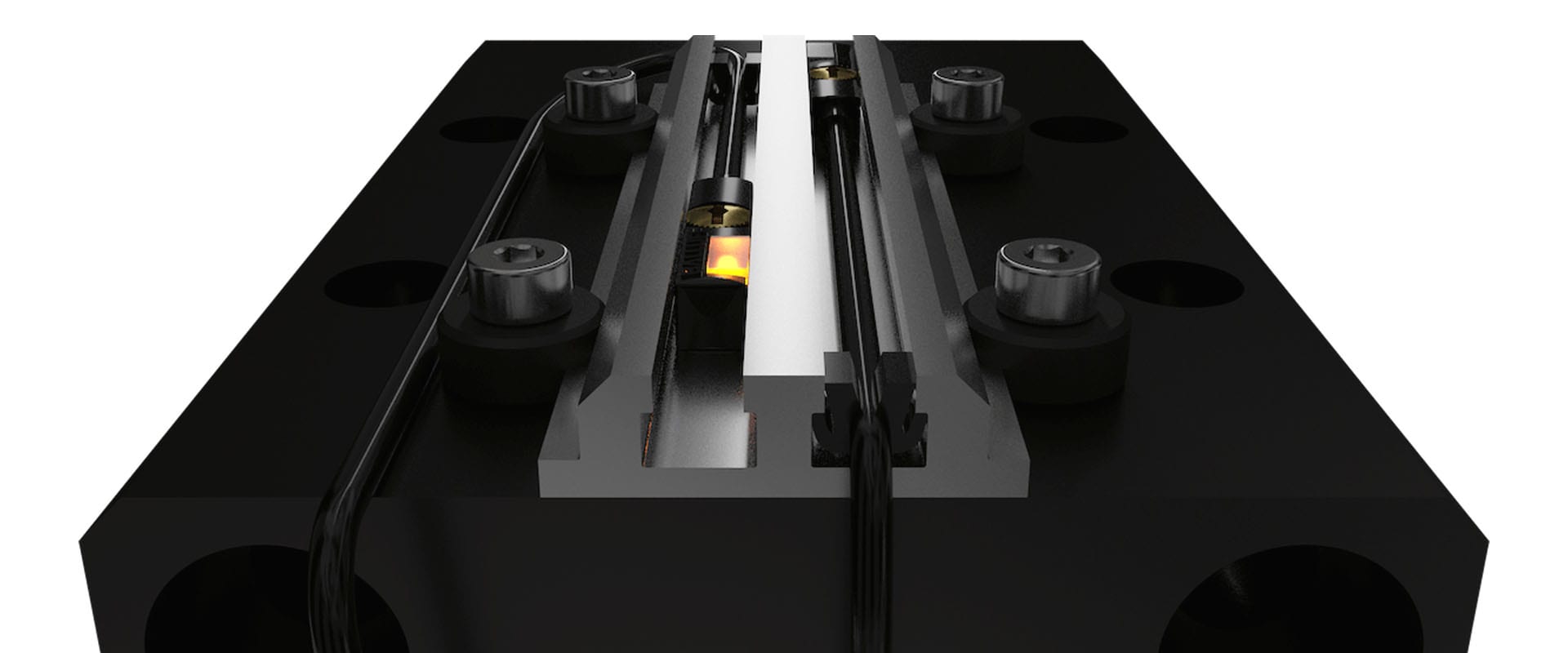

Magnetic Switches for V250CE Hydraulic Cylinders
The cylinder piston comes with a powerful magnet. Its stroke can be controlled by means of adjustable electronic sensors, able to read the magnetic field. Its signals can be transferred to the mold machine. These sensors can work to a maximum temperature of 80° C.
Compact Hydraulic Cylinders with 250 bar pressure
The maximum working pressure is 250 bars, and the maximum speed is 0,1 m/s.
Vega Cylinders offers a one-year long warranty for its cylinders, granting full support all over the world.
These short-stroke cylinders can be quickly delivered thanks to the full stock of Vega.
All products can be customized by sending a special project to Vega via e-mail (firstname.lastname@example.org).
All Vega products are tested before being delivered, in order to offer high-quality cylinders with no oil leakages.
